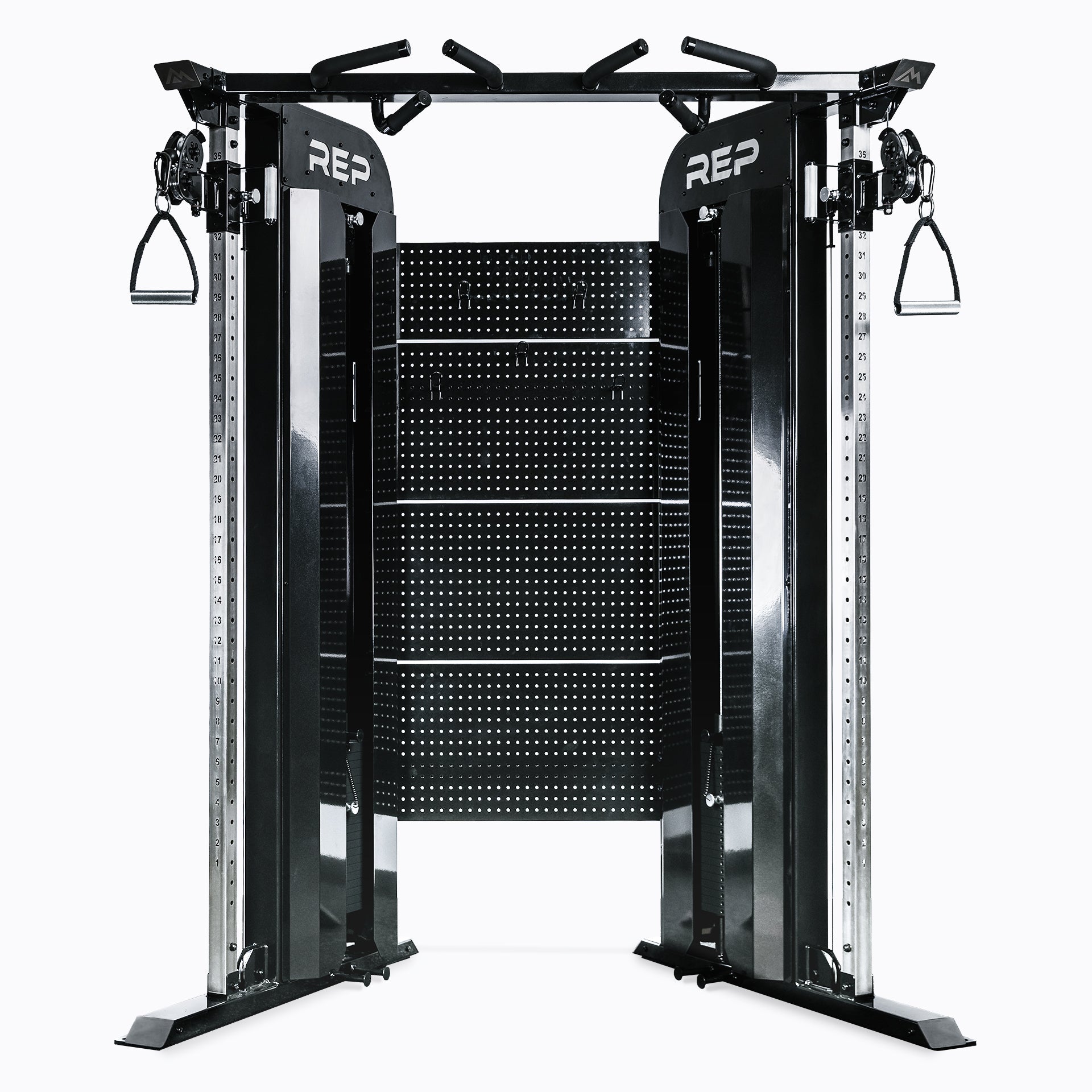

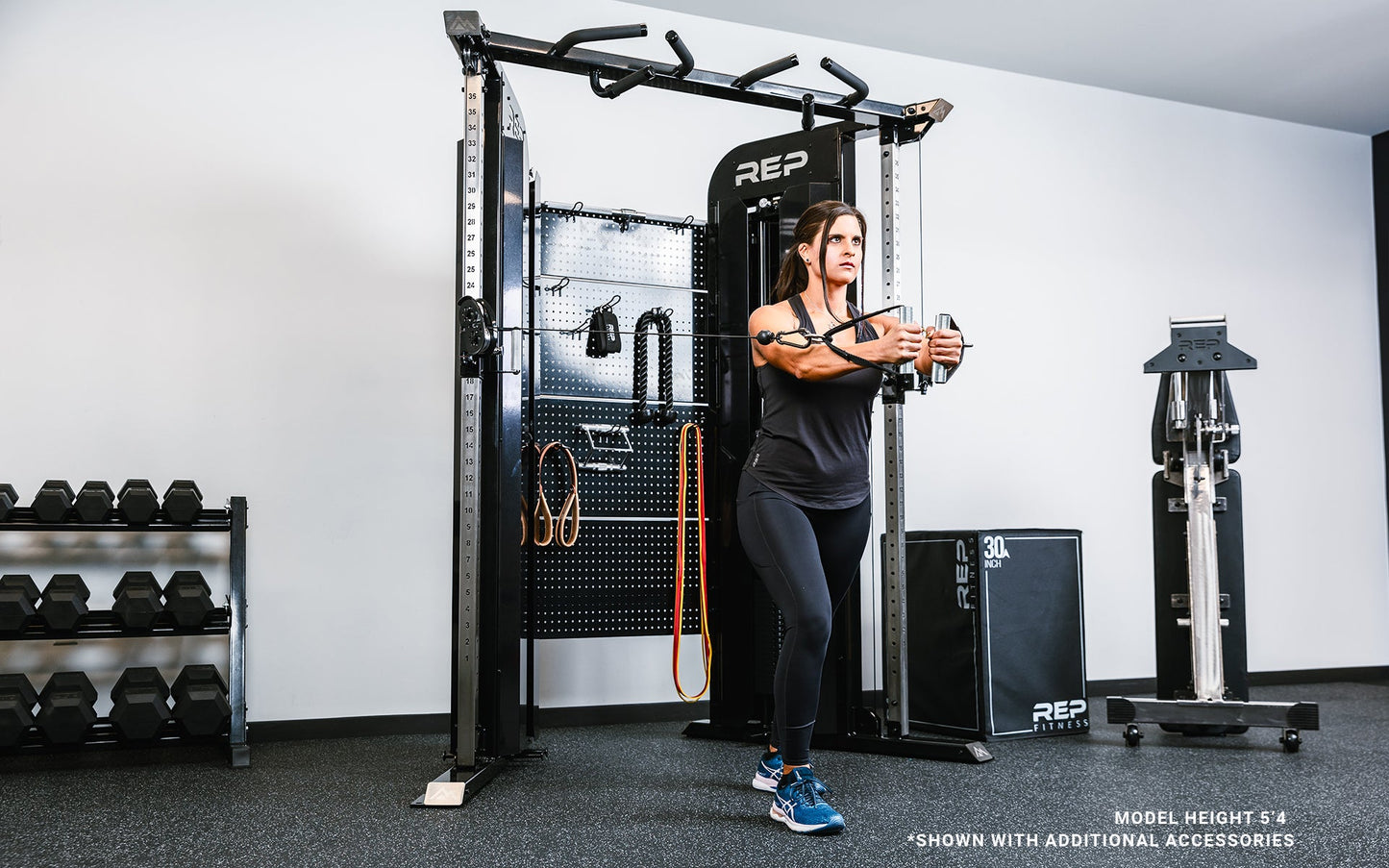

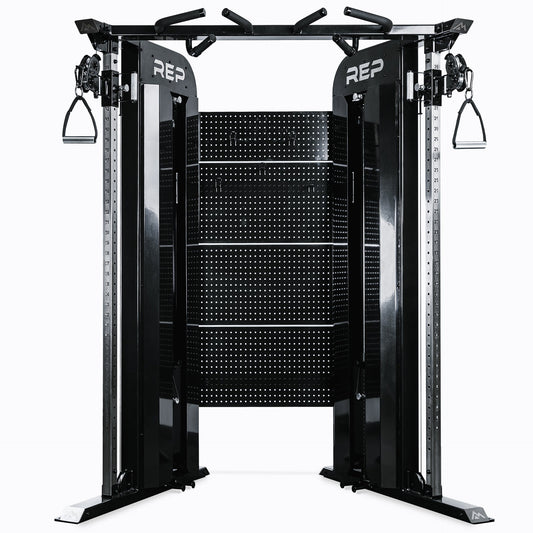

Arcadia™ Max Functional Trainer

The Arcadia™ max functional trainer is a full-size more versatile option of the original Arcadia™ trainer. The Arcadia™ max trainer has 36 trolley height options vs. 32 on the Arcadia™ trainer. The max usable load (with upgrade and add-on weight) of the Arcadia™ max trainer per side is 137.5lbs, whereas the Arcadia™ trainer tops at 110lbs per side with the upgraded weight. Cable travel length is 93.4" vs. 81". The front width on the Arcadia™ max trainer is also 75.5" vs. the 55" for the Arcadia™ trainer to offer an increased space for movements like cable chest flies.

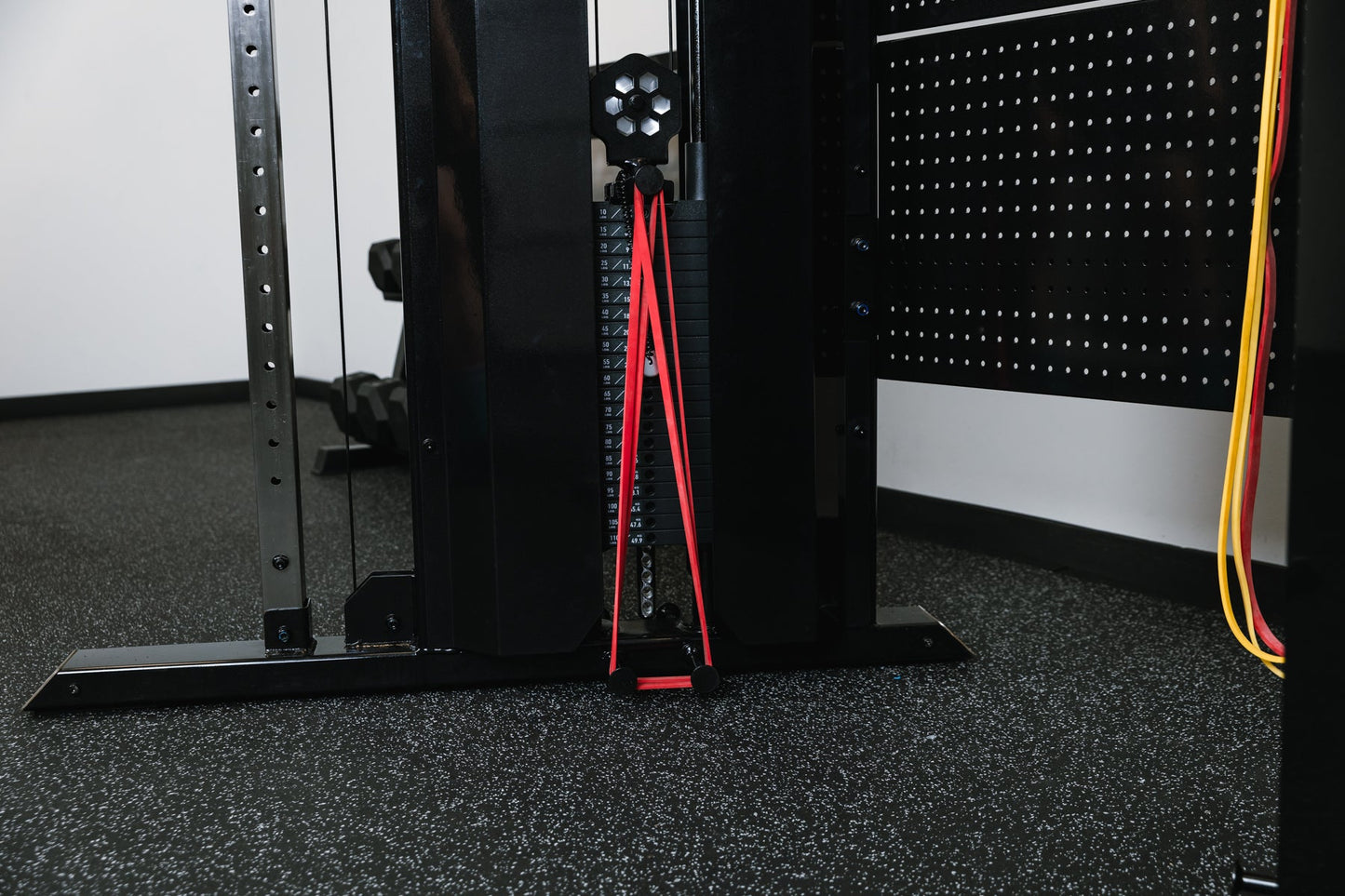

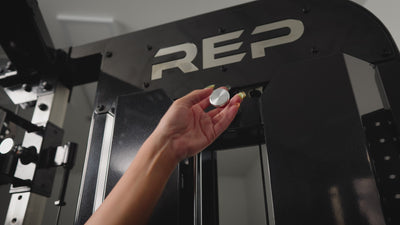

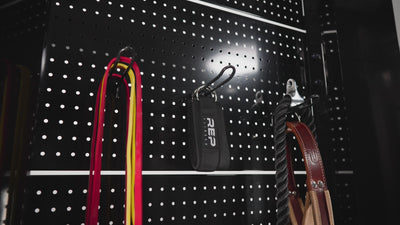

REP's Colorado-based engineering team is constantly working to innovate and improve our products, which is what led to the high-value Arcadia™ max functional trainer. The FT-5000 2.0 has 21 adjustment holes, while the Arcadia™ max functional trainer has 36 adjustment holes and laser-cut numbering, giving more versatility. The Arcadia™ max functional trainer also has weight stack plates, band pegs, and Ares™ Athena™ attachment-style trolleys. These light and smooth trolleys with knurled handles and oversized pop-pins are easy to adjust with one hand but strong enough to handle heavy weight. They're lined with a special plastic to protect your uprights. The trainer features 5lb weight increases and the ability to use resistance bands to increase the resistance. Metallic black or white shrouds give this commercial functional trainer a more premium look. Full-length pegboards are included to store your functional trainer attachments.

The cable travel length is 93.4".

This functional trainer has a 2:1 cable ratio, ideal for faster, explosive functional training exercises. The minimum usable weight on each side feels like 10lbs and the maximum feels like 112.5lbs with the add-on micro-weight. The maximum usable weight with the with the weight stack upgrade feels like 137.5lbs with add-on weight.

Our tallest staff member, Grant (6’6”), was able to get a full range of motion for tricep pressdowns. If you need to, you can always do pressdowns on your knees. Our shortest staff member, Aimee (5’), can do bicep curls without an issue, too. But you can always stand on a box to increase the range of motion.

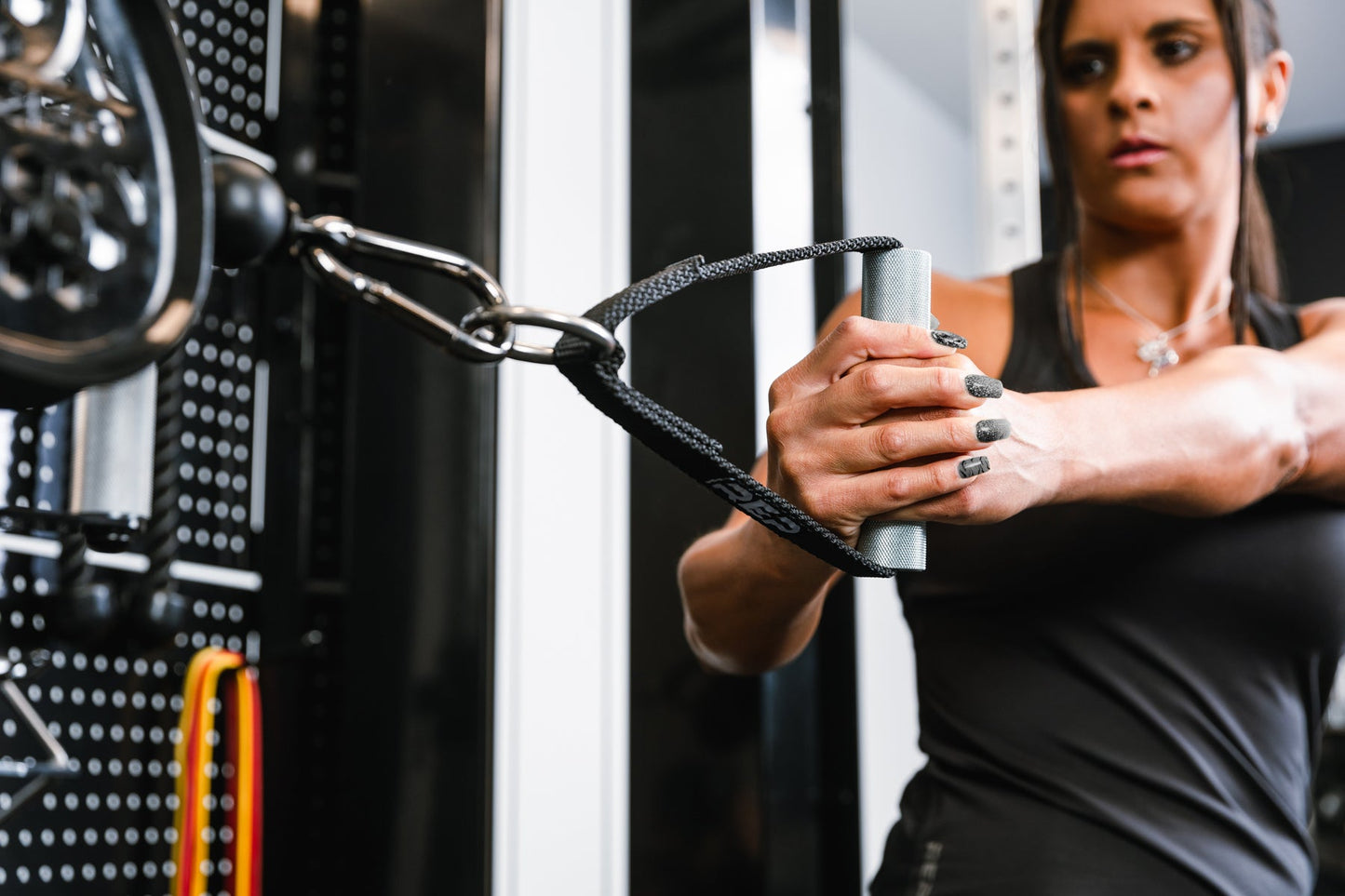

The Arcadia™ max functional trainer comes with two fully knurled, steel D-handles. It is also compatible with a ton of other functional trainer attachments, such as a Straight Bar, REP USA Leather Accessory Strap, and Ankle Cuff. Check out our Pro Series Package and Performance Package to cover all your attachment needs.

The minimum usable height on the Arcadia™ max functional trainer is 12.8". The maximum usable height is 77.5".

The Arcadia™ max functional trainer ships in a single crate -- (90(L)"x50"(W)x60"(H) -- that weights over 1,000lbs. It must ship via freight and does require the purchaser to be home for a scheduled delivery appointment.

The Arcadia™ max functional trainer ships partially assembled. Assembly takes approximately four hours with two people.

The cables initially come pre-installed, but you can find the cable replacement guide here.

Frames, structural welds, and weight stack plates have a limited lifetime warranty. Pop-pins, pulleys, plastic inserts, cables, and hardware have a one-year warranty.

No, Arcadia™ max functional trainer parts are not compatible with the FT-5000 2.0.

REP is constantly innovating and optimizing our product lineup. This inherently will result in newer iterations as time passes and therefore we won't offer an exchange program.
